Paihao High Lumen 10000 Ansi Lumens Laser Projector Bullet Point
1. High lumens projector series with high quality; 2. Native resolution 3840x2160p, 4K, with 0.65 nch DMD chip; 3. Laser light
source with multi-gravity Omni cooling technology of fast heat dissipation technology; 4. Brightness from 10000 ansi lumens to
90000 ansi lumens, constant super high brightness, suitable different situation; 5. Exceeding Rec.709 gamut with more vivid image;
6. 20000-40000 laser light life without light source maintenance; 7. Fully sealed optical module with dust proof; and up to 9
kinds electronic lens to optional for different situation,support remote control focus and zoom in / out; 8. Support geometric
correction without any external device, like barrel shape, arc shape, star shape,oyster shape, eye shape etc. 9. Support HD-Base T
remote distance data transmission; 3G-SDI data transmission, 3D-sync signal input &output; 10. Support 720 degree installation and
24 hours * 7 days working time.

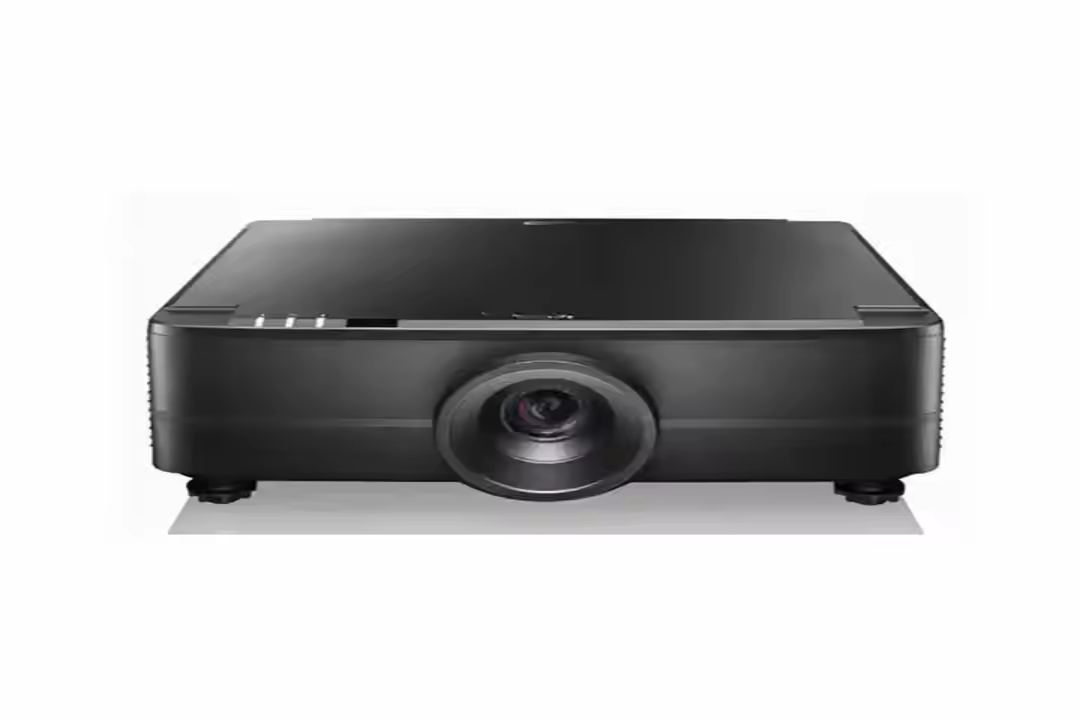

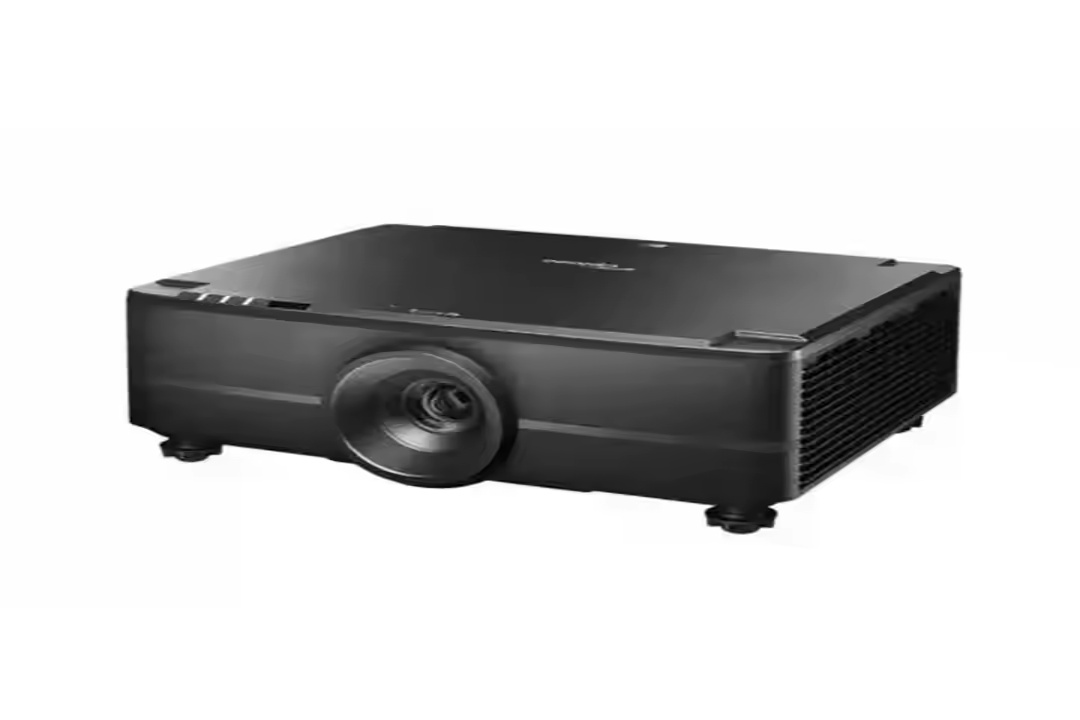

Omni S10 Parameter Details
Projector Type:4K Single Chip DLP Projector Technology: 0.65' DMD x1 Brightness:10000 ansi lumens Native Resolution:3840X2160P 4K
Aspect Ratio:16:10 Contrast ratio:5000,000:1 Uniformity:>90% Color Temperature:3200/5500/6500/9300/Native Laser Display
Technology:Speckle Free®5.0 Typical Lifetime: 20000/40000 Hours Adjustable Light Output: Support
Electronic Lens:
AP-HLD06: 0.65-0.75:1;AP-HLD12: 1.25-2.0(standard lens)
Lens Horizontal Shift: -50% to +50% Lens Vertical Shift:-110% to +110% Keystone H: ±45° Keystone V: ±45° Warping Support: Yes
Maximum Input Bandwidth:3300MHz Maximum
Large Venue Projector Interface:
HD ⑤In*2, DisplayPort In*1, DisplayPort Out*1, HDBaseT*1,3G-SDI In*1, 3G-SDI Out*1, VGA In*1, 3D SYNC In*1, 3D SYNC Out*1, IR
Extension In*1, IR Extension Out*1, RS232*1,RJ45*1, USB Power 2A*1, USB Debug*1
Power Input (Voltage):100-240V (+/- 10%) Power Input (Frequency):50-60Hz Maximum Power Consumption: 240 VAC Standby Power
Consumption: 240 VAC <0.5W
Consumpation: 800W Noise Level dB:45dB Certification: CCC Sealed Engine:Sealed 720 Degree Installation:Support 3D Function: Active
3D; Passive 3D; Dual Input 3D Working Temperature: 0-45°C Storage Temperature: -10-60°C Dimension DxWxH:490x440x188 mm
Packing list
Projector x1,standard lens x1, user manual x1, remote control x1, power cable x1.
